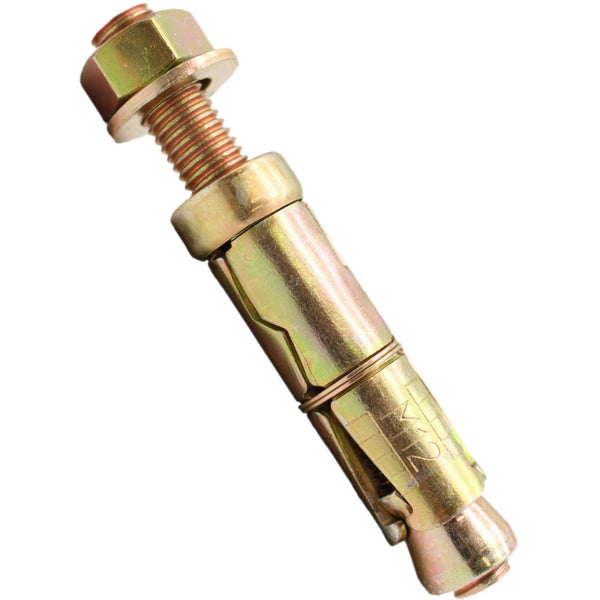

Shield Anchor Proj. Bolt - ZYP M8:60P SINGLE BOLT
Extra tradefit Offers | Use code (in checkout) |
5% off orders over £250 | 250Save |
10% off orders over £500 | 500Save |
Extra tradefit Offers | Use code (in checkout) |
5% off orders over £250 | 250Save |
10% off orders over £500 | 500Save |
Product Description
The projecting stud allows the fixture to be positioned into place and then fastened secure.
Technical Specification
Compatible with most types of metric threaded components. Torque controlled. Stud grade 5.8. Three piece segmented body. Captive expansion cone. Zinc and yellow passivated. High tensile strength. Corrosion rating level 1.
Suitable for the following materials – Concrete, Brick and Stone.
Installation Advice
Drill a hole to the required diameter and depth. Clean the hole with the cleaning brush. Gently tap the anchor shield in the hole. Put the stud through the attachment and into the anchor shield and then screw fully into the expander cone of the shield at least five full turns. Tighten to the recommended torque using a deep reach socket.
