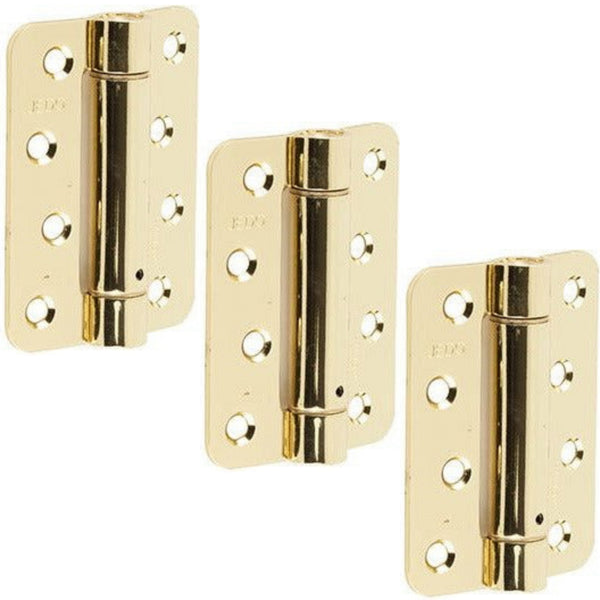

These hinges provide a neat alternative to fitting door closers where a self closing action is required for building regulations. They have an adjustable internal spring which can close doors up to 40kg with a thickness of 35 to 55mm They come in a set of 3 hinges and typically used on domestic doors. 1/2 hour fire tested to EN16034.
- Finishes: Stocked in satin chrome, electro brass & polished chrome
- Size: With dimensions of 102x76x2.7mm,
- Automatic Closing: Built-in spring mechanism closes the door automatically
- Adjustable Tension: 6 adjustable settings to match door weight and usage.
- Fire Resistance: FD30
- Fittings Included: Comes complete 24 x wood screws (Thread Diameter: 4mm, Thread Length: 25mm), 6 pins & 1 x Allen Key
- Carrying Weight: Up to 40kg with 3 hinges
- Usage: Ideal for residential settings & internal use only
30 minute fire tested to EN16034
TF Grade 2 Medium Duty Fire Door
Medium frequency of use by people with incentive to exercise care with a low chance of misuse.
< 10 Occupants
Domestic fire doors, Commercial private offices / low traffic doors.
Product Specification:
| Exact finish | Brass Plated |
| Finish group | Brass/Gold |
| Hinge height | 4 inch/102mm |
| Hinge height range | 4 - 4.5 inch / 100 - 114mm |
| Hinge width | 3 inch/76mm |
| Profile | Radius |
| Tf grade | 2 - Medium Duty |
| Type | Spring Hinges |
| Max door weight kg | 40 |
