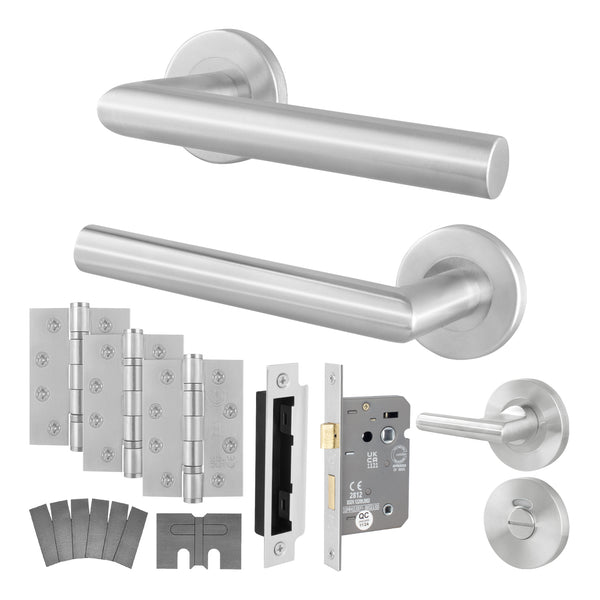

Our fire door handles are perfect for both contemporary and traditional applications on domestic and light commercial projects. Complete fire door pack that includes 1 x pair fire rated door handles, 2 x pairs fire rated 102mm ball race hinges, 1 x fire rated bathroom lock (80mm case/57mm backset), 1 x intumescent wrap for bathroom lock, 1 x pack of 6 intumescent hinge pads, 1 x turn and release, and all fixings
- Stylish satin stainless steel finish
- FD30/60 minute fire rating
- 19mm diameter lever on 52x8mm sprung rose
- Spindle, bolt through fixings and screw fixings supplied for 35-54mm doors
- 78mm sprung latch included
- 102x76mm matching finish hinges and screws included
- Intumescent packs for latch & hinges included
TF Grade 2 Medium Duty Fire Door
Medium frequency of use by people with incentive to exercise care with a low chance of misuse.
< 10 Occupants
Domestic fire doors, Commercial private offices / low traffic doors.
Product Specification:
Exact finish |
Satin Stainless Steel |
Exterior use |
Internal Only |
Finish group |
Silver |
Handle type |
Bathroom |
Kit option |
Bathroom |
Option |
Door Kit |
Range |
Mitre |
Tf grade |
2 - Medium Duty |
Type |
Lever on Rose |
Fire rating |
FD30/60
|
Next working day delivery is available on products marketed as "Next Day" and when placed before 5pm Monday to Friday. Orders containing "Next Day" and "2/3 Day" products (or other slower services e.g. "Custom Made") will be delivered in line with the slower product.
FREE Delivery on orders over £30.00. Orders under £30.00 will be charged £4.95 for delivery (plus any long length charges as detailed below)
Longer length products with have an additional delivery charge for orders under £75. For 2 day services there will be a £5.00 surcharge (if under £75), Next day delivery will have a £20.00 surcharge (This is waived for orders over £200)
You will be provided with clear tracking to track your order.
Do Fire Doors Need Special Handles?
There is currently no requirement under the Construction Product Regulations for fire doors to have fire rated handles, as they are not integral to the function of a fire door in an emergency. HOWEVER - good practice would always be to ensure any fire door handles have been tested to BS EN 1634, as this will determine their resistance in a fire.
More important is to ensure that latches or locks fitted to a fire door are fire rated and fitted with intumescent wraps - these are essential to the function of a fire door and can have catastrophic consequences if they fail.
How Do I Know If My Door Handle Is Fire Rated?
As stated above, there is no legal requirement for fire doors to have fire rated handles. But when buying fire door handles, always ensure they have been tested to BS EN 1634 to determine the fire resistance rating (FD30 or FD60). If in doubt, always check the test certificate of your fire door as this will determine whether it was tested with fire rated handles.
Is It Easy To Fit a New Door Handle?
Door handles can generally be fitted by anyone competent in basic DIY. We've outlined the steps below for guidance:
Remove the Old Handle
- Align the new handle with the existing spindle hole and fixing points. Mark new holes if needed.
- Slide the spindle through the latch or lock mechanism in the door.
- Position each handle on either side of the door over the spindle. Secure with the provided screws.
- Ensure the handle moves smoothly and the latch engages and releases properly.
- Snap or screw on any decorative cover plates to conceal fixings.
