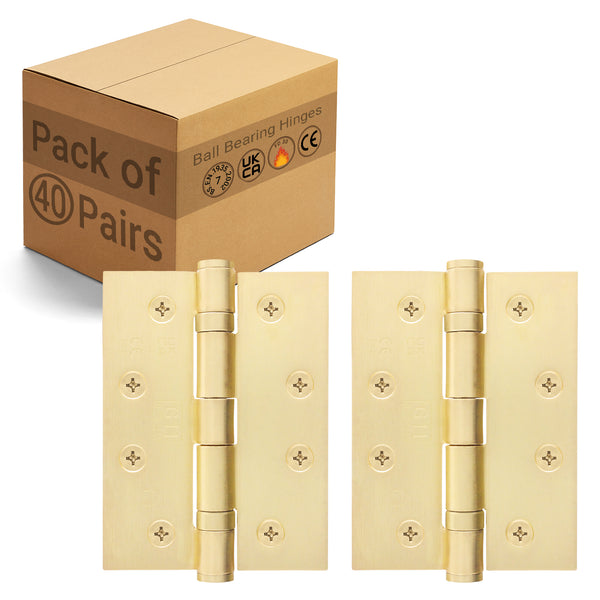

Satin Brass Fire Door Hinges – 4 Inch/102mm – Grade 11 Steel Ball Bearing – Pack of 40 Pairs

Do fire doors need special hinges?

Yes, fire door hinges must be CE marked and made from a non-combustible material with a melting point of at least 800°C (such as brass, stainless steel and phosphor bronze). The size of the hinge fitted should be outlined in the fire door test, although the most common sizes are 100mm and 76mm. The CE and UKCA mark should be clearly displayed on the hinge.

Do fire door hinges need intumescent pads?

Yes and we cannot emphasis this enough - fire door hinges will not be fully effective without intumescent pads. These stop the spread of smoke and fire through the gaps created by fitting the hinge into the door, so they are vital to not only maintain compliance but, more importantly, keep the fire door working effectively. A fire door is tested as a complete assembly, including all essential hardware such as intumescent pads and seals - therefore, it will only work correctly if it’s installed using the same equivalent components as when it was tested. These will be listed on the fire door manufacturer’s installation instructions and ignoring these could have catastrophic consequences - it's just not worth the risk.

How many hinges should a fire door have?

Fire doors should be fitted with a minimum of 3 CE rated hinges for timber doors, while steel doors or doors over 2400mm tall will require 4 hinges.
