- Heavy duty - suitable for high traffic areas subject to frequent or violent use such as schools, public toilets, apartment blocks
- Rated BS EN 1906 : 2010 Grade 4 - Suitable for high frequency use on doors which are subject to frequent or violent use. Ideal for public toilets, schools, apartment blocks
- Complies with BS 8300 Equality Act requirements
- Fire Rating: 30 and 60 minute timber doors
- 200,000 cycle tested - equivalent to 20 years of frequent use
- Grade 304 Stainless Steel - suitable for use on external doors
- Suitable for 35-54mm doors

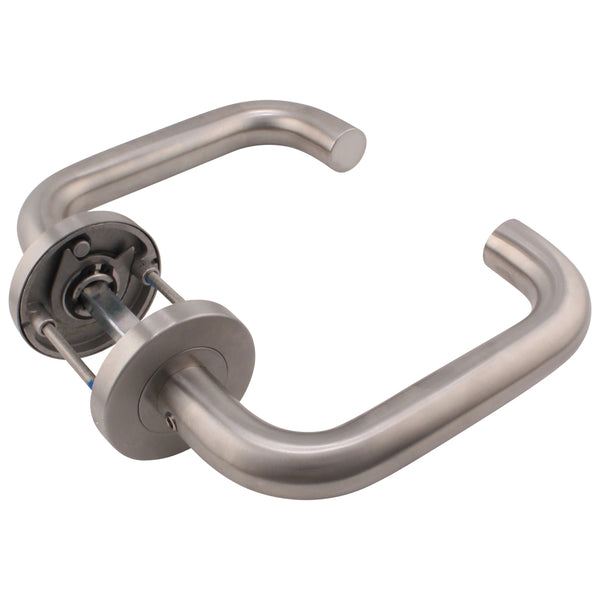

TF Grade 4 Severe Duty Fire Door
Severe frequency of use on doors which are subject to abusive / violent usage and misuse.
40+ Occupants
Public buildings, offices, schools, universities, student accommodation, hospitals, healthcare, hotels, bars, shops, leisure, public toilets and high commercial use in offices, warehouses and factories.
Product Specification:
| Application |
Internal/External |
| Bs 8300 compliant |
Yes |
| Exact finish |
Satin Stainless Steel |
| Finish group |
Silver |
| Option |
Handles Only |
| Range |
Return to Door |
| Tf grade |
4 - Severe Duty |
| Type |
Lever on Rose |
| Fire rating |
FD30/60
|
Next working day delivery is available on products marketed as "Next Day" and when placed before 5pm Monday to Friday. Orders containing "Next Day" and "2/3 Day" products (or other slower services e.g. "Custom Made") will be delivered in line with the slower product.
FREE Delivery on orders over £30.00. Orders under £30.00 will be charged £4.95 for delivery (plus any long length charges as detailed below)
Longer length products with have an additional delivery charge for orders under £75. For 2 day services there will be a £5.00 surcharge (if under £75), Next day delivery will have a £20.00 surcharge (This is waived for orders over £200)
You will be provided with clear tracking to track your order.
Do Fire Doors Need Special Handles?
There is currently no requirement under the Construction Product Regulations for fire doors to have fire rated handles, as they are not integral to the function of a fire door in an emergency. HOWEVER - good practice would always be to ensure any fire door handles have been tested to BS EN 1634, as this will determine their resistance in a fire.
More important is to ensure that latches or locks fitted to a fire door are fire rated and fitted with intumescent wraps - these are essential to the function of a fire door and can have catastrophic consequences if they fail.
How Do I Know If My Door Handle Is Fire Rated?
As stated above, there is no legal requirement for fire doors to have fire rated handles. But when buying fire door handles, always ensure they have been tested to BS EN 1634 to determine the fire resistance rating (FD30 or FD60). If in doubt, always check the test certificate of your fire door as this will determine whether it was tested with fire rated handles.
Is It Easy To Fit a New Door Handle?
Door handles can generally be fitted by anyone competent in basic DIY. We've outlined the steps below for guidance:
Remove the Old Handle
- Align the new handle with the existing spindle hole and fixing points. Mark new holes if needed.
- Slide the spindle through the latch or lock mechanism in the door.
- Position each handle on either side of the door over the spindle. Secure with the provided screws.
- Ensure the handle moves smoothly and the latch engages and releases properly.
- Snap or screw on any decorative cover plates to conceal fixings.
