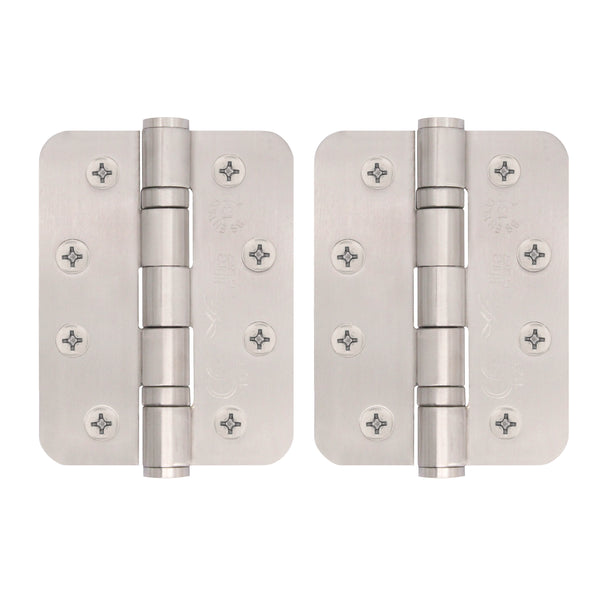

Satin Stainless Fire Door Hinges - 4 Inch/102mm - Grade 13 Steel Ball Bearing - Pack 2 - Radius
- Home
-
Fire Door Hardware 🔥
TF Grade 2 Medium Duty Fire DoorMedium frequency of use by people with incentive to exercise care with a low chance of misuse.
< 10 Occupants
Domestic homes, commercial private offices / low traffic doors.
See our range of TF GRADE 2 hardware:
TF Grade 3 Heavy Duty Fire DoorHigh frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
See our range of TF GRADE 3 hardware:
TF Grade 4 Severe Duty Fire DoorVery high frequency of use on doors which are subject to abusive / violent usage and misuse.
40+ Occupants
Public buildings, offices, schools, universities, student accommodation, hospitals, healthcare, hotels, bars, shops, leisure, public toilets and high commercial use in offices, warehouses and factories.
See our range of TF GRADE 4 hardware:
Read our full guide on fire door grading, hardware and various applications here.
- Door Controls
- Door Furniture
- Hinges & Pivots
- Pocket & Sliding Door
- Seals & Intumescent
- Security
- Other
Expert Support Team
available 8:30 – 5:30 Mon-Fri
0203 9242 988 /
FREE Next Day Delivery
on orders over £30 inc vat and just £4.95
for smaller orders (click for details)
Rated *
from 3,200+ verified customer reviews.
Read them now, click here
Fire door hinges are an absolute necessity for maintaining the compliance and safety of fire doors, and ours are rigorously tested to meet all British Standards so you can fit with confidence
Key features:
- These hinges are suitable for high traffic commercial doors
- Grade 13 - suitable for doors weighing up to 120kg
- Tested and certified to BS EN 1634 for use on 30/60 minute fire doors
- BS EN 1935 performance tested to withstand 200,000 cycles
- Tested to CE 2812, UKCA 1121
- Size: 102 x 76 x 3mm
- Ball bearings give smooth operation and higher durability
- Supplied in pairs with matching finish 12 x 1 1/2 ” threaded screws
- IMPORTANT: Fire rating is only achieved when the door is fitted with 3 hinges and intumescent hinge pads[endif]
TF Grade 3 Heavy Duty Fire Door
Heavy frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
Product Specification:
| Bearing type | Ball Bearing |
| Exact finish | Satin Stainless Steel |
| Finish group | Silver |
| Grade | 13 |
| Hinge height | 4 inch/102mm |
| Hinge height range | 4 - 4.5 inch / 100 - 114mm |
| Hinge width | 3 inch/76mm |
| Profile | Radius |
| Tf grade | 3 - Heavy Duty |
| Type | Fire Door Hinges |
| Fire rating | FD30/60 |
| Max door weight kg | 120 |
