Fire Door Kit - Office Locking Door - Severe Duty - Cylinder & Turn Master Key - Satin Stainless Steel
- Home
-
Fire Door Hardware 🔥
TF Grade 2 Medium Duty Fire DoorMedium frequency of use by people with incentive to exercise care with a low chance of misuse.
< 10 Occupants
Domestic homes, commercial private offices / low traffic doors.
See our range of TF GRADE 2 hardware:
TF Grade 3 Heavy Duty Fire DoorHigh frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
See our range of TF GRADE 3 hardware:
TF Grade 4 Severe Duty Fire DoorVery high frequency of use on doors which are subject to abusive / violent usage and misuse.
40+ Occupants
Public buildings, offices, schools, universities, student accommodation, hospitals, healthcare, hotels, bars, shops, leisure, public toilets and high commercial use in offices, warehouses and factories.
See our range of TF GRADE 4 hardware:
Read our full guide on fire door grading, hardware and various applications here.
- Door Controls
- Door Furniture
- Hinges & Pivots
- Pocket & Sliding Door
- Seals & Intumescent
- Security
- Other
Expert Support Team
available 8:30 – 5:30 Mon-Fri
0203 9242 988 /
FREE Next Day Delivery
on orders over £30 inc vat and just £4.95
for smaller orders (click for details)
Rated *
from 3,200+ verified customer reviews.
Read them now, click here
Our tradefit Grade 4 fire door kits are designed, tested and certified for fire doors in environments classified as Severe Duty. They are ideal for high-traffic areas such as buildings with over 40 occupants typically used by the public and subject to frequent abusive or violent door use.
These kits feature a cam action fire door closer that reduces the force to open the door, easing operation and minimising wear on handles and locks. The slide arms are non-projecting, reducing the risk of damage or misuse, they aesthetically pleasing, and importantly prevent users from hanging objects, ensuring the door remains functional. Concealed bearing fire door hinges feature built-in lubrication that automatically lubricates the hinge with each door movement, ensuring extended longevity and minimal maintenance. Locks, hinges, and handles are tested to "Severe Duty" CE and UKCA standards, enduring 500,000 cycle testing.
This kit, backed by a 25-year mechanical guarantee, ensures you have fitted properly tested and accredited ironmongery for the most demanding of environments.
Order Intumescent strip, kickplates and door stops separately to suit your door finish, size and application.
Ideal Environments
• Buildings with greater than 40 occupants
• Schools, universities and student accommodation
• Public use office doors
• Shops and restaurants
• Hotels, Leisure and Bars
• Public toilets
Specifications
• FD30/60 tested and certified
• Conforms to requirements of BS 8300
• Maximum door width: 1100mm
• Maximum door weight: 80kg
• Maximum door thickness: 35-44mm
• 25 year mechanical guarantee

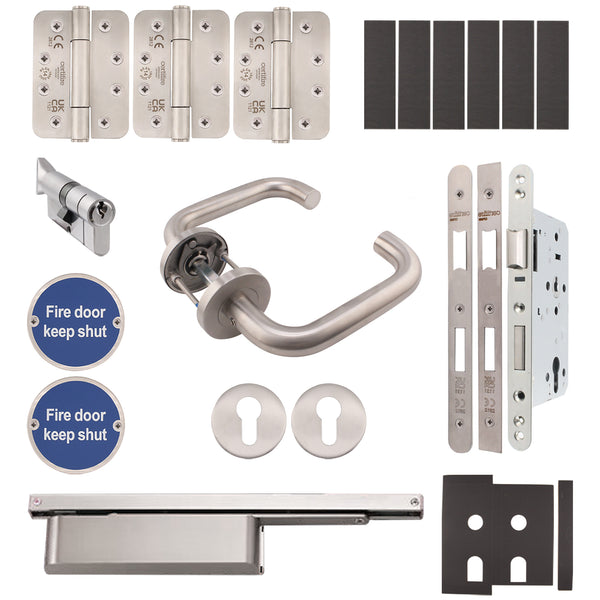

Kit contents
• 1 x Return to Door Handle - BS EN 1906 Grade 4 Certified
• 3 x Concealed Self Lubricating Bearing Radius Fire Door Hinges - 4 Inch/102mm - BS EN 1935 Grade 14 Certified
• 6 x Intumescent Hinge Pads
• 1 x DIN Standard Mortice Euro Sashlock inc. Square and Radius Faceplate/Keep Options - BS EN 12209 Grade 4 Certified
• 1 x Intumescent DIN Lock wrap
• 2 x 52mm Euro Escutcheons
• 1 x 70mm 5 pin anti-pick Euro Cylinder and Turn - 3 Keys – Master Keyed - Supplied with differ keys - master key sold separately, see code 10702
• 1 x Cam action overhead slide arm door closer Matching Finish Arm Track and Cover
• 2 x 76mm round Fire Door Keep Shut signs
TF Grade 4 Severe Duty Fire Door
Severe frequency of use on doors which are subject to abusive / violent usage and misuse.
40+ Occupants
Public buildings, offices, schools, universities, student accommodation, hospitals, healthcare, hotels, bars, shops, leisure, public toilets and high commercial use in offices, warehouses and factories.
Product Specification:
| Application | Locking - Master Keyed |
| Exact finish | Satin Stainless Steel |
| Finish group | Silver |
| Handle type | Lever on Rose |
| Includes closer | Yes |
| Kit option | Office/Room |
| Option | Commercial Door Kit |
| Range | Return to Door |
| Tf grade | 4 - Severe Duty |
| Type | Lever on Rose |
| Fire rating | FD30/60 |
