Our tradefit Grade 4 fire door kits are designed, tested and certified for fire doors in environments classified as Severe Duty. They are ideal for high-traffic areas such as buildings with over 40 occupants typically used by the public and subject to frequent abusive or violent door use.
Concealed bearing fire door hinges feature built-in lubrication that automatically lubricates the hinge with each door movement, ensuring extended longevity and minimal maintenance. Locks, hinges, and handles are tested to "Severe Duty" CE and UKCA standards, enduring 500,000 cycle testing.
This kit, backed by a 25-year mechanical guarantee, ensures you have fitted properly tested and accredited ironmongery for the most demanding of environments.
Order Intumescent strip, kickplates and door stops separately to suit your door finish, size and application.
Ideal Environments
• Buildings with greater than 40 occupants
• Schools, universities and student accommodation
• Public use office doors
• Shops and restaurants
• Hotels, Leisure and Bars
• Public toilets
Specifications
• FD30/60 tested and certified
• Conforms to requirements of BS 8300
• Maximum door width: 1100mm
• Maximum door weight: 80kg
• Maximum door thickness: 35-44mm
• 25 year mechanical guarantee

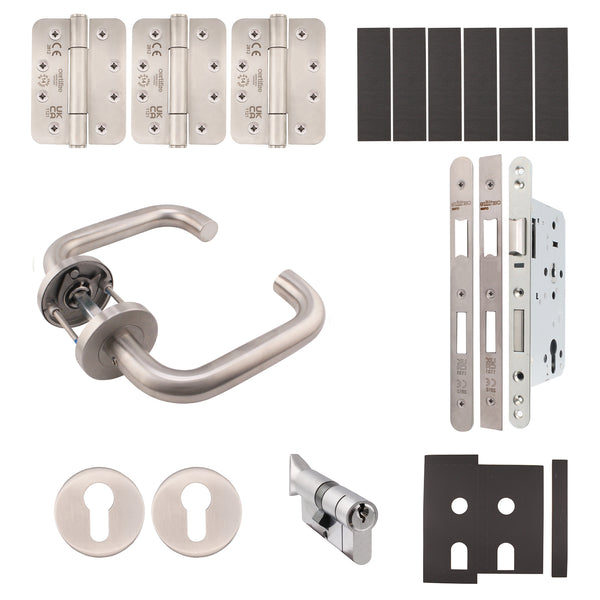

Kit contents
• 1 x Return to Door Handle - BS EN 1906 Grade 4 Certified
• 3 x Concealed Self Lubricating Bearing Radius Fire Door Hinges - 4 Inch/102mm - BS EN 1935 Grade 14 Certified
• 6 x Intumescent Hinge Pads
• 1 x DIN Standard Mortice Euro Sashlock inc. Square and Radius Faceplate/Keep Options - BS EN 12209 Grade 4 Certified
• 1 x Intumescent DIN Lock wrap
• 2 x 52mm Euro Escutcheons
• 1 x 70mm 5 pin anti-pick Euro Cylinder and Turn - 3 Keys – Master Keyed - Supplied with differ keys - master key sold separately, see code 10702
