Our tradefit Grade 3 fire door kits are designed, tested and certified for fire doors in environments classified as Heavy Duty. They are ideal for high-traffic buildings with less than 40 occupants where users may have little incentive to exercise care with some chance of door misuse and abuse.
To lock internally, lift handle to throw the deadbolt. To exit, turn the lever handle down to release deadbolt and further down to withdraw the roller bolt latch. For operation externally, turn lever handle down to withdraw the roller bolt latch or in case of emergency use the coin release to withdraw the deadbolt.
Innovative lift-to-lock handle that's ideal for disabled toilets as the lifting action is easier to operate than a standard disabled toilet lock. Coin release on the outside for exit in case of emergency. Tubular door handle and a secure round rose cover with a tight rubber seal for extra durability.
Tested to BS EN 1634-1 and complies with the design requirements of BS 8300, also UKCA 1121 and CE 2812 marked.
These kits include ball-bearing hinges ensure smooth door operation, while locks, hinges, and handles are tested to "Heavy Duty" CE and UKCA standards, withstanding 250,000 cycle testing.
This kit, backed by a 10-year mechanical guarantee, ensures you have fitted properly tested and accredited ironmongery for your chosen environment.
Order Intumescent strip, kickplates and door stops separately to suit your door finish, size and application
Ideal Environments
• Buildings with less than 40 occupants
• HMO accommodation
• Commercial property and office doors
• Small shops, hotels and leisure facilities
Specifications
• FD30/60 tested and certified
• Conforms to requirements of BS 8300, also UKCA 1121 and CE 2812 marked.
• Maximum door width: 1100mm
• Maximum door weight: 80kg
• Maximum door thickness: 44-54mm
• 10-year mechanical guarantee

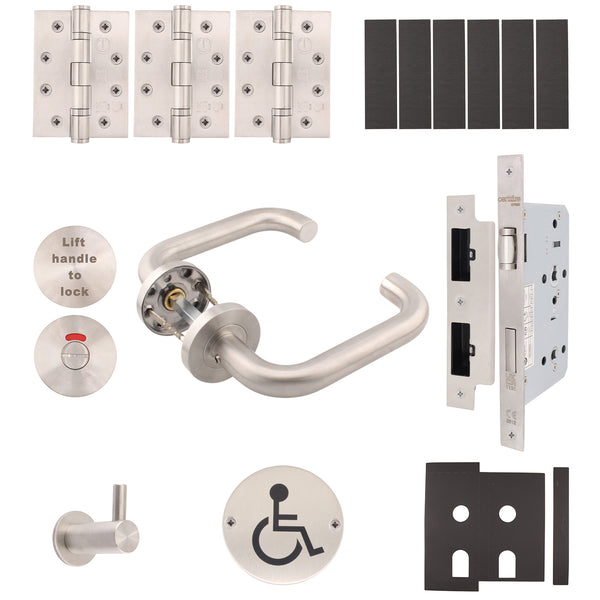

Kit contents
• 1 x lift-to-lock handle set with coin release on the outside
• 1 x lift-to-lock DIN mortice lock 90mm case size - square forend, anti-rattle strike. Grip tight follower. complies with BS EN 12209 2003: Grade 3
• 1 x Intumescent DIN Lock wrap - FD30/60 rated
• 3 x Ball Bearing Door Hinges - 4 Inch/102mm - BS EN 1935 Grade 13 Certified
• 6 x Intumescent Hinge Pads
• 1 x 76mm round wheelchair toilet sign
• 1 x cubical hook
TF Grade 3 Heavy Duty Fire Door
Heavy frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
Product Specification:
| Application | Locking - Bathroom |
| Exact finish | Satin Stainless Steel |
| Finish group | Silver |
| Handle type | Lever on Rose |
| Includes closer | No |
| Kit option | Toilet/Cubicle |
| Range | Lift to Lock |
| Tf grade | 3 - Heavy Duty |
| Type | Lever on Rose |
| Fire rating | FD30/60 |
