Our tradefit Grade 4 fire door kits are designed, tested and certified for fire doors in environments classified as Severe Duty. They are ideal for high-traffic areas such as buildings with over 40 occupants typically used by the public and subject to frequent abusive or violent door use.
These kits feature a cam action fire door closer that reduces the force to open the door, easing operation and minimising wear on handles and locks. The slide arms are non-projecting, reducing the risk of damage or misuse, they aesthetically pleasing, and importantly prevent users from hanging objects, ensuring the door remains functional. Concealed bearing fire door hinges feature built-in lubrication that automatically lubricates the hinge with each door movement, ensuring extended longevity and minimal maintenance. Locks, hinges, and handles are tested to "Severe Duty" CE and UKCA standards, enduring 500,000 cycle testing.
This kit, backed by a 25-year mechanical guarantee, ensures you have fitted properly tested and accredited ironmongery for the most demanding of environments.
Order Intumescent strip, kickplates and door stops separately to suit your door finish, size and application.
Ideal Environments
• Buildings with greater than 40 occupants
• Schools, universities and student accommodation
• Public use office doors
• Shops and restaurants
• Hotels, Leisure and Bars
• Public toilets
Specifications
• FD30/60 tested and certified
• Conforms to requirements of BS 8300
• Maximum door width: 1100mm
• Maximum door weight: 80kg
• Maximum door thickness: 35-44mm
• 25-year mechanical guarantee

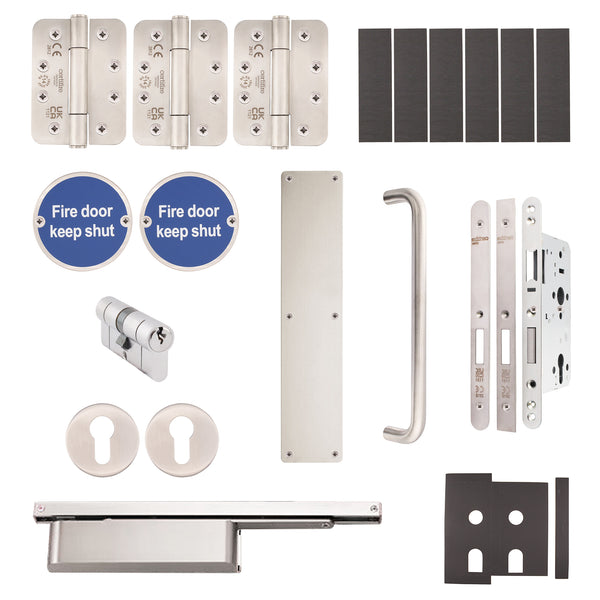

Kit contents
• 1 x Bolt Fixed Pull Handle - 300 x 19mm
• 1 x Finger Push Plate - 350 x 75mm - Radius Corners
• 3 x Concealed Self Lubricating Bearing Radius Fire Door Hinges - 4 Inch/102mm - BS EN 1935 Grade 14 Certified
• 6 x Intumescent Hinge Pads
• 1 x DIN Standard Mortice Euro Deadlock - Square & Radius Faceplate/Strike Option - BS EN 12209 Grade 3 Certified
• 1 x Intumescent DIN Lock wrap - FD30/60 rated
• 1 x 70mm 5 pin anti-pick Euro Double Cylinder - 3 Keys - Master Keyed - Supplied with differ keys - master key sold separately, see code 10702
• 2 x Euro Profile Escutcheons
• 1 x Cam action overhead slide arm door closer Matching Finish Arm Track and Cover
• 2 x 76mm round Fire Door Keep Shut signs
