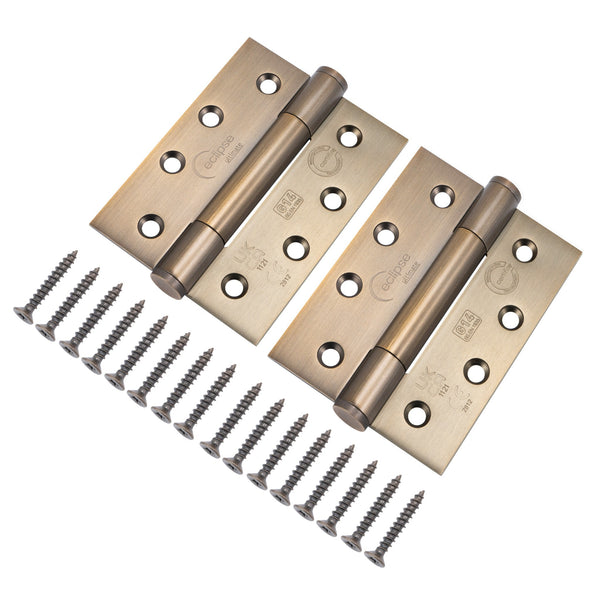

Fire Door Hinges – Concealed Polymer Bearing - CE FD30/60/90/120 - 4 Inch/102mm Square - Grade 14 Max Door 160kg - Antique Brass
- Home
-
Fire Door Hardware 🔥
TF Grade 2 Medium Duty Fire DoorMedium frequency of use by people with incentive to exercise care with a low chance of misuse.
< 10 Occupants
Domestic homes, commercial private offices / low traffic doors.
See our range of TF GRADE 2 hardware:
TF Grade 3 Heavy Duty Fire DoorHigh frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
See our range of TF GRADE 3 hardware:
TF Grade 4 Severe Duty Fire DoorVery high frequency of use on doors which are subject to abusive / violent usage and misuse.
40+ Occupants
Public buildings, offices, schools, universities, student accommodation, hospitals, healthcare, hotels, bars, shops, leisure, public toilets and high commercial use in offices, warehouses and factories.
See our range of TF GRADE 4 hardware:
Read our full guide on fire door grading, hardware and various applications here.
- Door Controls
- Door Furniture
- Hinges & Pivots
- Pocket & Sliding Door
- Seals & Intumescent
- Security
- Other
Expert Support Team
available 8:30 – 5:30 Mon-Fri
0203 9242 988 /
FREE Next Day Delivery
on orders over £30 inc vat and just £4.95
for smaller orders (click for details)
Rated *
from 3,200+ verified customer reviews.
Read them now, click here
Our Grade 14 fire door hinges are suitable for high-use public buildings including schools, hospitals, student accommodation and public toilets with 40+ occupants. Designed for the most demanding environments, they provide reliable fire door performance on heavy weight timber and steel doors.
Manufactured from Grade 201 stainless steel, these hinges are tested and certified to BS EN 1935:2002 Grade 14 and are suitable for doors weighing up to 160kg. The robust construction makes them suitable for both commercial and residential applications where durability and long-term performance are essential.
The hinges are EN1634 tested and approved for use on 30, 60, 90 and 120 minute timber fire doors, as well as 240 minute steel fire doors. They are also Certifire approved, providing independent third-party certification for use on fire door assemblies. Their self-lubricating design helps ensure smooth operation throughout the life of the hinge while reducing maintenance requirements.
The 102 x 76 x 3mm format makes them suitable for a wide range of heavy-duty fire door applications in schools, universities, offices, shops, restaurants, hotels and other public buildings.
- BS EN 1935:2002 Grade 14 certified and CE and UKCA marked
- EN1634 tested and approved for 30, 60, 90 and 120 minute timber fire doors and 240 minute steel fire doors
- Certifire approved for use on fire door assemblies
- Suitable for doors up to 160kg in weight
- 102 x 76 x 3mm Grade 201 stainless steel construction with self-lubricating design
- Supplied as 1 pair (2 individual hinges)
TF Grade 4 Severe Duty Fire Door
Severe frequency of use on doors which are subject to abusive / violent usage and misuse.
40+ Occupants
Public buildings, offices, schools, universities, student accommodation, hospitals, healthcare, hotels, bars, shops, leisure, public toilets and high commercial use in offices, warehouses and factories.
Product Specification:
| Bearing type | Concealed Polymer |
| Exact finish | Antique Brass |
| Finish group | Brass/Gold |
| Grade | 14 |
| Hinge height | 4 inch/102mm |
| Hinge height range | 4 - 4.5 inch / 100 - 114mm |
| Hinge width | 3 inch/76mm |
| Profile | Square |
| Tf grade | 4 - Severe Duty |
| Type | Fire Door Hinges |
| Fire rating | FD30/60/120 |
| Max door weight kg | 160 |
