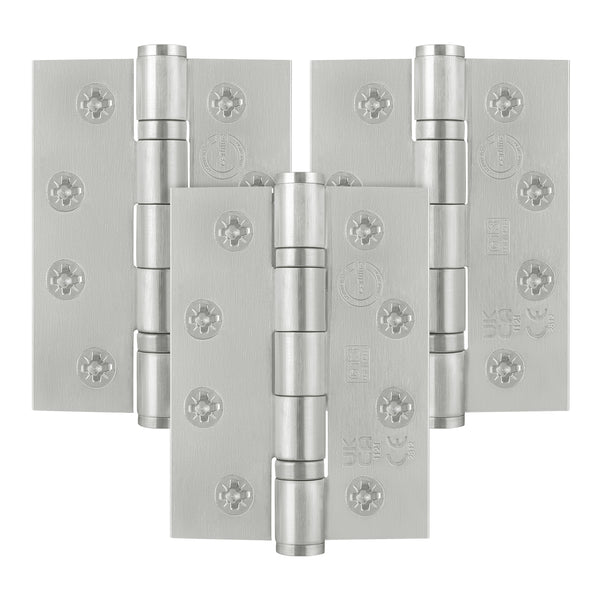

Our Grade 13 fire door hinges are suitable for commercial and public use in offices, warehouses, small shops, hotels and HMOs with up to 40 occupants. Designed for demanding environments, they provide smooth, reliable operation while helping maintain the performance and compliance of fire-rated door assemblies.
Featuring precision ball bearings and welded hinge caps, these hinges are designed to withstand frequent use while delivering smooth door movement and long-term durability. Suitable for doors weighing up to 120kg, they are an excellent choice for commercial buildings where reliability is essential.
Performance tested to BS EN 1935 Grade 13, the hinges have been independently tested to 200000 cycles and are CE 2812 marked, UKCA 1121 marked and Certifire approved. They are EN1634 tested and approved for use on 30 and 60 minute timber fire doors, providing independently verified performance for fire door applications.
Manufactured in a 102 x 76 x 2.7mm format, the hinges are supplied in pairs with matching 5.0 x 30mm threaded screws for straightforward installation. Fire door hinges must always be fitted with compatible intumescent hinge pads to achieve the tested fire rating and maintain fire door compliance.
- BS EN 1935 Grade 13 certified, CE 2812 marked, UKCA 1121 marked and Certifire approved
- EN1634 tested and approved for 30 and 60 minute timber fire doors
- Suitable for doors up to 120kg in weight
- 102 x 76 x 2.7mm ball bearing hinge with welded hinge caps for increased durability
- Supplied in pairs with matching 5.0 x 30mm threaded screws
- Fire door hinges must be fitted with intumescent hinge pads to achieve fire door compliance
TF Grade 3 Heavy Duty Fire Door
Heavy frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
Product Specification:
| Bearing type | Ball Bearing |
| Exact finish | Satin Stainless Steel |
| Finish group | Silver |
| Grade | 13 |
| Hinge height | 4 inch/102mm |
| Hinge height range | 4 - 4.5 inch / 100 - 114mm |
| Hinge width | 3 inch/76mm |
| Pack qty | 3 |
| Profile | Square |
| Tf grade | 3 - Heavy Duty |
| Type | Fire Door Hinges |
| Fire rating | FD30/60 |
| Max door weight kg | 120 |
