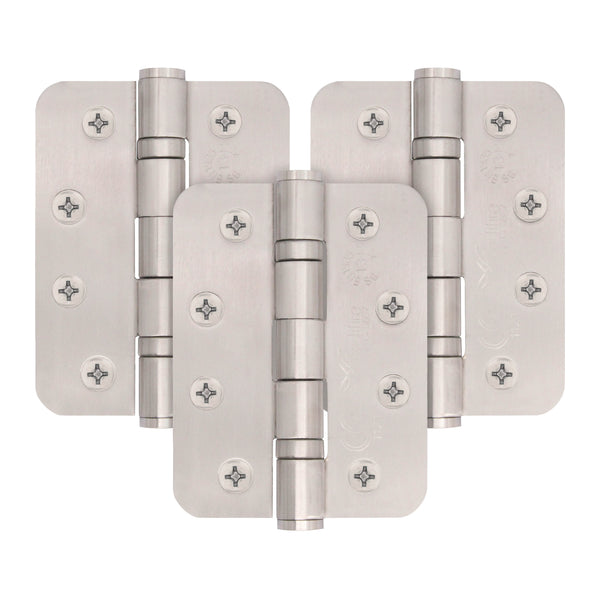

Fire door hinges are an absolute necessity for maintaining the compliance and safety of fire doors, and ours are rigorously tested to meet all British Standards so you can fit with confidence
Key features:
- These hinges are suitable for high traffic commercial doors
- Grade 13 - suitable for doors weighing up to 120kg
- Tested and certified to BS EN 1634 for use on 30/60 minute fire doors
- BS EN 1935 performance tested to withstand 200,000 cycles
- Tested to CE 2812, UKCA 1121
- Size: 102 x 76 x 3mm
- Ball bearings give smooth operation and higher durability
- Supplied in pack of 3 hinges with matching finish 12 x 1 1/2 ” threaded screws
- IMPORTANT: Fire rating is only achieved when the door is fitted with 3 hinges and intumescent hinge pads
TF Grade 3 Heavy Duty Fire Door
Heavy frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
Product Specification:
| Bearing type | Ball Bearing |
| Exact finish | Satin Stainless Steel |
| Finish group | Silver |
| Grade | 13 |
| Hinge height | 4 inch/102mm |
| Hinge height range | 4 - 4.5 inch / 100 - 114mm |
| Hinge width | 3 inch/76mm |
| Profile | Radius |
| Tf grade | 3 - Heavy Duty |
| Type | Fire Door Hinges |
| Fire rating | FD30/60 |
| Max door weight kg | 120 |
