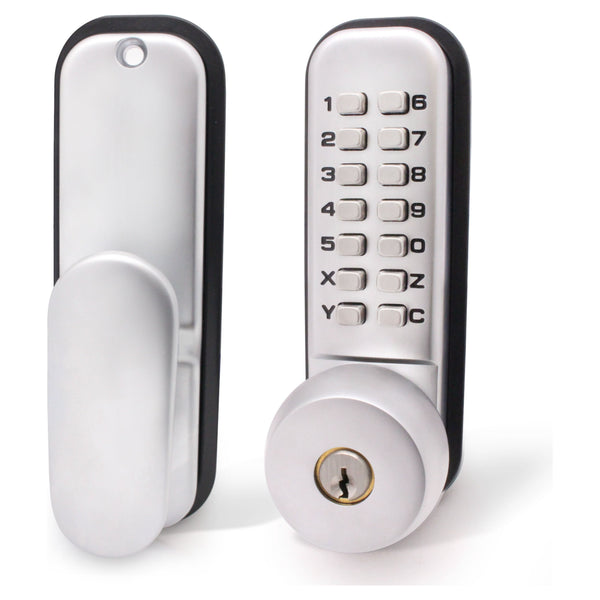

The ED20 digital door lock is an entry-level mechanical door lock suited to both a domestic and commercial setting, this lock is ideal for use in storerooms, residential projects, retail cupboards/offices, sheds, and garages. Quick and easy to install on left or right-hand doors, this lock is suitable for doors 35-55mm thick. Featuring both a quick code change, key override, and hold-back function, this digital lock will provide ease of use while maintaining security.
With the low-maintenance weather-resistant satin chrome finish and rubber weather seal, the combination code lock is ideal for bin stores and outdoor locations.
- Tested and approved for use on 30 and 60 minute fire doors - fit with intumescent kit code 72057
- 142mm (H) x 41mm (W) x 36mm (D)
- 4 Digit Code
- 1 User Code
- Supplied with 2 keys
- 60mm Latch Backset
- 7mm Follower
- Non-Handed
- Suitable for doors 35mm - 55mm thick
- Over 8000 Possible Codes
- Suitable For Internal & External Use
- Comes With Lock, Latch & Fixings
- Key Override function
- Hold Back Facility - Allows Free Passage
- 13 Code buttons
