Our Dumont lever on Rose tradefit grade 1 light duty door kit is designed for environments classified as light duty. They are ideal for medium traffic non fire rated doors in buildings with less than 5 occupants where users have a high incentive to exercise care and with a small chance of misuse. The handles included on this kit feature a grub screw to spindle fixing to prevent handles being wrenched from the door. Coupled with back to back fixings you can be sure of a solid permanent fit. Ball bearing hinges ensure smooth door movement, while locks with strong spring mechanisms for reliable handle performance. This kit, backed by a 5 year mechanical guarantee ensures you have fitted properly tested and accredited ironmongery for your chosen environment
Ideal Environments:
- Buildings with less than 5 occupants
- Domestic property
- Lightweight doors
Specifications:
- Ball bearing hinges for smooth door action
- Back to back bolt through fixed handles for a solid permanent fit
- Grub screw to spindle fixing to prevent knobs being wrenched from the door
- Maximum door weight 40kg
- Suit door thickness - 35mm
- 5 year mechanical guarantee

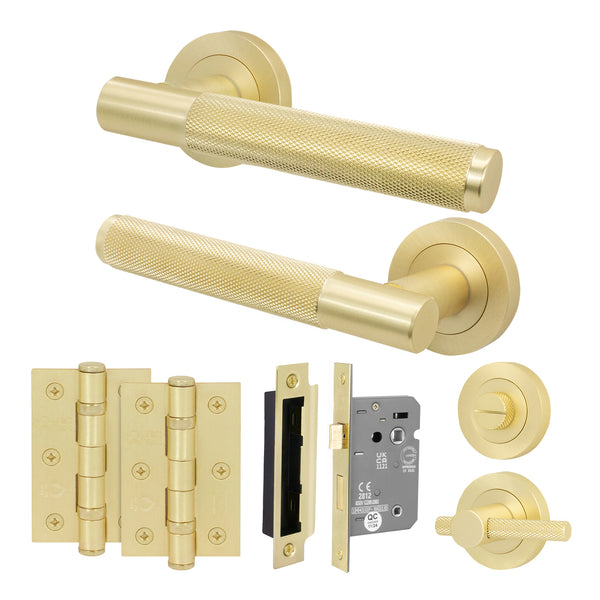

Kit Contents:
- Kit Contents:
- 1 x Pair lever on rose door handles
- 2 x Ball bearing hinges - 3 Inch / 76mm
- 1 x Mortice bathroom lock - 64mm case / 44mm backset
Product Specification:
| Application |
Bathroom |
| Exact finish |
Satin Brass |
| Exterior use |
Internal Only |
| Finish group |
Brass/Gold |
| Handle type |
Bathroom |
| Includes closer |
No |
| Kit option |
Toilet/Cubicle |
| Option |
Door Kit |
| Range |
Dumont |
| Tf grade |
1 - Domestic |
| Type |
Lever on Rose |
Next working day delivery is available on products marketed as "Next Day" and when placed before 5pm Monday to Friday. Orders containing "Next Day" and "2/3 Day" products (or other slower services e.g. "Custom Made") will be delivered in line with the slower product.
FREE Delivery on orders over £30.00. Orders under £30.00 will be charged £4.95 for delivery (plus any long length charges as detailed below)
Longer length products with have an additional delivery charge for orders under £75. For 2 day services there will be a £5.00 surcharge (if under £75), Next day delivery will have a £20.00 surcharge (This is waived for orders over £200)
You will be provided with clear tracking to track your order.
Do Fire Doors Need Special Handles?
There is currently no requirement under the Construction Product Regulations for fire doors to have fire rated handles, as they are not integral to the function of a fire door in an emergency. HOWEVER - good practice would always be to ensure any fire door handles have been tested to BS EN 1634, as this will determine their resistance in a fire.
More important is to ensure that latches or locks fitted to a fire door are fire rated and fitted with intumescent wraps - these are essential to the function of a fire door and can have catastrophic consequences if they fail.
How Do I Know If My Door Handle Is Fire Rated?
As stated above, there is no legal requirement for fire doors to have fire rated handles. But when buying fire door handles, always ensure they have been tested to BS EN 1634 to determine the fire resistance rating (FD30 or FD60). If in doubt, always check the test certificate of your fire door as this will determine whether it was tested with fire rated handles.
Is It Easy To Fit a New Door Handle?
Door handles can generally be fitted by anyone competent in basic DIY. We've outlined the steps below for guidance:
Remove the Old Handle
- Align the new handle with the existing spindle hole and fixing points. Mark new holes if needed.
- Slide the spindle through the latch or lock mechanism in the door.
- Position each handle on either side of the door over the spindle. Secure with the provided screws.
- Ensure the handle moves smoothly and the latch engages and releases properly.
- Snap or screw on any decorative cover plates to conceal fixings.
