TF Grade 2 Medium Duty Fire DoorMedium frequency of use by people with incentive to exercise care with a low chance of misuse.
< 10 Occupants
Domestic homes, commercial private offices / low traffic doors.
See our range of TF GRADE 2 hardware:
TF Grade 3 Heavy Duty Fire DoorHigh frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
See our range of TF GRADE 3 hardware:
TF Grade 4 Severe Duty Fire DoorVery high frequency of use on doors which are subject to abusive / violent usage and misuse.
40+ Occupants
Public buildings, offices, schools, universities, student accommodation, hospitals, healthcare, hotels, bars, shops, leisure, public toilets and high commercial use in offices, warehouses and factories.
See our range of TF GRADE 4 hardware:
Read our full guide on fire door grading, hardware and various applications here.
- Door Controls
- Door Furniture
- Hinges & Pivots
- Pocket & Sliding Door
- Seals & Intumescent
- Security
- Other
Expert Support Team
available 8:30 – 5:30 Mon-Fri
0203 9242 988 /
FREE Next Day Delivery
on orders over £30 inc vat and just £4.95
for smaller orders (click for details)
Project Quotes
If you have a larger project, contact
us for a fast, competitive quote today.

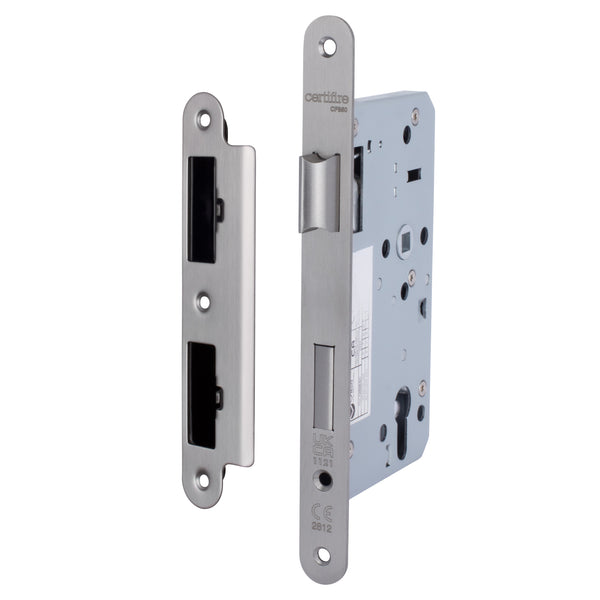

Combines security with safety for commercial/residential doors. Emergency operation: internal handle instantly withdraws both latch and deadbolt in one motion, even when locked—enabling quick escape during fires or emergencies.
How Does This Emergency Door Lock Operate?
- The latch is withdrawn via a lever handle from either side of the door (handles sold separately).
- The deadbolt is locked and unlocked via a Euro profile cylinder (cylinder sold separately). One single turn of the key or thumb-turn on the Euro cylinder will completely throw the 20mm deadbolt.
- In the event of an emergency when the door is locked (when the deadbolt has been thrown), the internal lever handle, when operated, will withdraw the latch and deadbolt simultaneously, allowing the door to be opened in one single operation.
- Suitable for fire doors, timber FD30, FD60, FD120, steel FD 240
- CE, UKCA marked and certified to BS EN 179:2008, BS EN 12209:2003 standards Grade 3. Certifire approved.
- Latch can be reversed on site without taking the lock case apart
- Includes split spindle, adjustable anti-rattle strike plate and dust box.
- Bolt-through the facility for bolt-together fixing of lever handles and accessories at 38mm centres.
- 60mm Backset, 165x90mm case, radius forend
- 10-year mechanical guarantee as standard
Product Specification:
| Backset mm | 60 |
| Case size mm | 90 |
| Exact finish | Satin Stainless Steel |
| Finish group | Silver |
| Size range | 3.5 Inch / 90mm |
| Tf grade | 3 - Heavy Duty |
| Type | Sashlock |
| Fire rating | FD30/60 |
