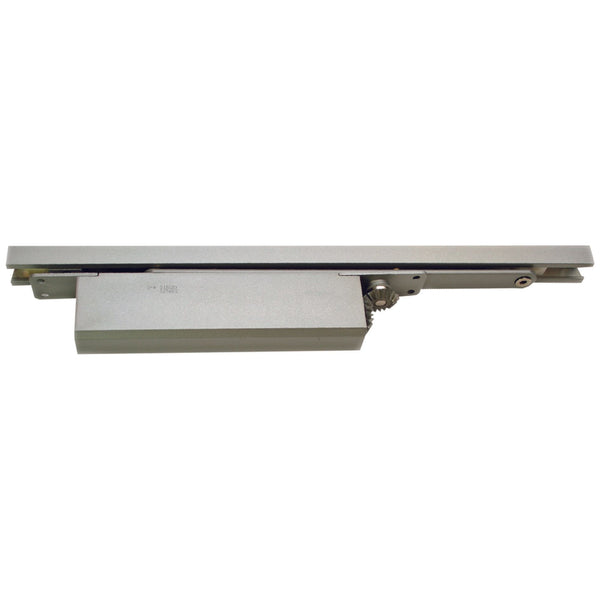

Concealed Cam Action Door Closer - Power Size 2-4 - Silver
- Home
-
Fire Door Hardware 🔥
TF Grade 2 Medium Duty Fire DoorMedium frequency of use by people with incentive to exercise care with a low chance of misuse.
< 10 Occupants
Domestic homes, commercial private offices / low traffic doors.
See our range of TF GRADE 2 hardware:
TF Grade 3 Heavy Duty Fire DoorHigh frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
See our range of TF GRADE 3 hardware:
TF Grade 4 Severe Duty Fire DoorVery high frequency of use on doors which are subject to abusive / violent usage and misuse.
40+ Occupants
Public buildings, offices, schools, universities, student accommodation, hospitals, healthcare, hotels, bars, shops, leisure, public toilets and high commercial use in offices, warehouses and factories.
See our range of TF GRADE 4 hardware:
Read our full guide on fire door grading, hardware and various applications here.
- Door Controls
- Door Furniture
- Hinges & Pivots
- Pocket & Sliding Door
- Seals & Intumescent
- Security
- Other
Expert Support Team
available 8:30 – 5:30 Mon-Fri
0203 9242 988 /
FREE Next Day Delivery
on orders over £30 inc vat and just £4.95
for smaller orders (click for details)
Rated *
from 3,200+ verified customer reviews.
Read them now, click here
The cam action mechanism, rather than a rack and pinion, makes these closers a perfect choice for care homes and educational properties as they are less prone to misuse or damage because there's no protruding arm. Cam action door closers use a cam mechanism to reduce the resistance when opening a door, which enables a door to be opened using a low amount of force - making them a great choice for meeting the requirements of Approved Document M + BS 8300. Cam action closers work with a slide arm – we stock both surface mounted on the door and concealed models. They have a much slimmer, sleeker profile than rack and pinion closers and are considered to be more aesthetically pleasing and architectural. We can supply an array of plated and painted finishes to special order.
- No protruding arms - ideal for areas prone to vandalism
- Low opening force
- Slimline semi-radius cover
- Variable power size 2-4
- Suitable for doors up to 80kg and 1100mm wide
- Cam mechanism enables a door to be opened using a low amount of force, making this closer an ideal choice for meeting the requirements of Approved Document M and BS 8300 Equality Act.
- CE marked to EN1154. Tested on fire doors up to 120 minutes
- 25 year guarantee
Product Specification:
| Exact finish | Silver |
| Finish group | Silver |
| Type | Overhead |
| Bs en1154 tested | Yes |
| Bs en 1634 tested | Yes |
| Closer type | Overhead |
| Power size | 2-4 |
| Fire rating | FD120 |
| Max door weight kg | 80 |
| Max door width mm | 1100 |
