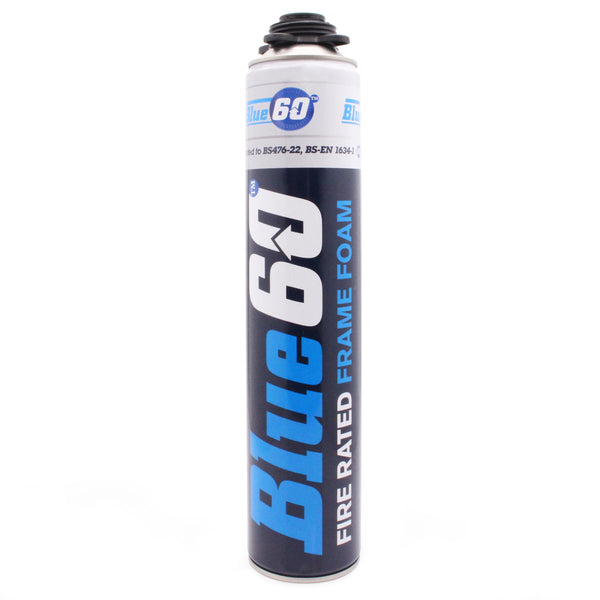

Blue 60 Fire Rated Frame Foam - Gun Grade - 750ml
- Home
-
Fire Door Hardware 🔥
TF Grade 2 Medium Duty Fire DoorMedium frequency of use by people with incentive to exercise care with a low chance of misuse.
< 10 Occupants
Domestic homes, commercial private offices / low traffic doors.
See our range of TF GRADE 2 hardware:
TF Grade 3 Heavy Duty Fire DoorHigh frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
See our range of TF GRADE 3 hardware:
TF Grade 4 Severe Duty Fire DoorVery high frequency of use on doors which are subject to abusive / violent usage and misuse.
40+ Occupants
Public buildings, offices, schools, universities, student accommodation, hospitals, healthcare, hotels, bars, shops, leisure, public toilets and high commercial use in offices, warehouses and factories.
See our range of TF GRADE 4 hardware:
Read our full guide on fire door grading, hardware and various applications here.
- Door Controls
- Door Furniture
- Hinges & Pivots
- Pocket & Sliding Door
- Seals & Intumescent
- Security
- Other
Expert Support Team
available 8:30 – 5:30 Mon-Fri
0203 9242 988 /
FREE Next Day Delivery
on orders over £30 inc vat and just £4.95
for smaller orders (click for details)
Rated *
from 3,200+ verified customer reviews.
Read them now, click here
- Blue 60 is a specially formulated expanding foam that achieves up to 60 minute fire protection for timber fire doorsets.
- 30 & 60 minute fire tested to BS EN 1634-1 & BS 476: Part 22.
- Tested in full size single & double doorsets
- Tested with softwood, MDF & hardwood frame sections
- Tested with gaps between 7mm & 30mm
- Blue in colour for compliance & identification purposes
Ratio of Blue 60 Packers per tin of Blue 60 Foam
There are 10 fixing points per frame with the correct gaps of 7/9mm = 3 packers per fixing - 30 packers per frame.
One can of Blue 60 with correct gaps of 7/9mm is enough for 3 doorsets, equalling 90 packers per can plus extra packers for shimming under the frame to square the head due to uneven floor surfaces equates to 100 packers required per can.
If the gaps are bigger then more foam and packers are required on a pro-rata basis.
To summarise 33 of each size of packer is required per can of foam and there are 3 different sizes of packer.
Per box there are 4 bags x 100 of each size of packer are required.
