Our Euro profile sashlock is designed for domestic and heavy commercial applications where reliable locking performance and fire door compliance are required. Suitable for use on FD30 and FD60 fire doors when fitted with a compatible intumescent wrap, it provides a dependable locking solution for offices, warehouses, shops, hotels, HMOs and residential properties.
Tested and certified to BS EN 12209 Grade 3, the lock is suitable for heavy duty environments and has been independently tested to 200000 cycles to demonstrate long-term durability. CE and UKCA marking provides assurance that the lock meets relevant performance and compliance standards.
The lock features a quality dual spring mechanism, making it suitable for use with both sprung and unsprung lever handles as well as door knobs. This provides greater flexibility when specifying door furniture while maintaining reliable operation.
The lock incorporates an 8mm spindle follower and pierced lock case to allow the use of bolt through fixings for a secure installation. A dust box is also included to provide a neat frame finish and help protect the frame from debris during operation.
- BS EN 12209 Grade 3 tested and certified for heavy duty environments
- EN1634 tested and approved for 30 and 60 minute fire doors when fitted with a compatible intumescent wrap
- CE and UKCA marked and independently tested to 200000 cycles
- Quality dual spring mechanism suitable for sprung and unsprung handles and door knobs
- 78mm case with 57mm backset, 8mm spindle follower and pierced case for bolt through fixings

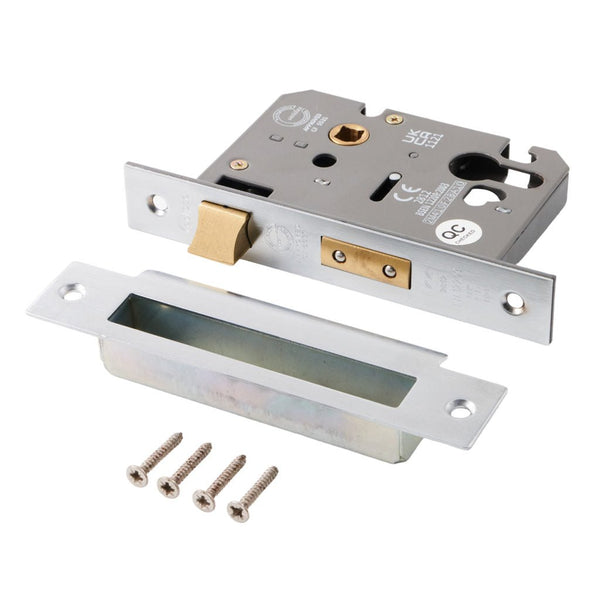

- Supplied with dust box, strike plate and fixings
TF Grade 3 Heavy Duty Fire Door
Heavy frequency of use by public or others with little incentive to exercise care and with a chance of misues.
< 40 Occupants
Offices, warehouses, commercial property, small shops, hotels, bars, leisure and HMO (houses of multiple occupancy).
Product Specification:
| Backset mm | 57 |
| Case size mm | 80 |
| Exact finish | Satin Chrome |
| Finish group | Silver |
| Lock centres mm | 47.5 |
| Option | Euro Profile |
| Size range | 3 Inch / 76-80mm |
| Tf grade | 3 - Heavy Duty |
| Type | Sashlock |
| Fire rating | FD30/60 |
